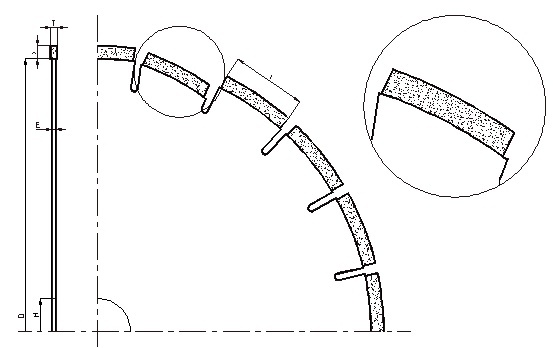

Type: 1A1RCS Diamond saws for asphalt cutting
| diameter D |
steel core thickness E |
segment dimensions L x T x X |
quantity of segments N |
quantity of slanted segments |
| 300 |
1,8 |
40 x 2.8 x 8+2 |
18 |
2 |
| 350 |
2,2 |
40 x 3.0 x 8+2 |
21 |
3 |
| 400 |
2,5 |
40 x 3.3 x 8+2 |
24 |
3 |
| 450 |
2,5 |
40 x 3.6 x 8+2 |
25 |
3 |
| 500 |
2,8 |
40 x 3.8 x 8+2 |
30 |
3 |
| 600 |
2,8 |
40 x 3.8 x 8+2 |
35 |
4 |
| 700 |
3,5 |
40 x 4.4 x 8+2 |
40 |
5 |
| 800 |
3,5 |
40 x 4.4 x 8+2
|
46 |
5 |
Bond: sintered metal M
Order example: type D x H
1A1RCS 350 x 25.4
Recommended maximal working speed
| ø 300 ÷ 450 |
Vmax = 100m/s |
| ø 500 ÷ 800 |
Vmax = 63m/s |
Recommended revolutions
| ø 300 |
6400 r.p.m. |
| ø 350 |
5400 r.p.m. |
| ø 400 |
4800 r.p.m. |
| ø 450 |
4300 r.p.m. |
| ø 500 |
|
| ø 600 |
|
| ø 700 |
|
| ø 800 |
|
|
